Before you can use the TSC Bluetooth printer, you will need to follow the setup steps below. *Make sure to enable Bluetooth on the Honeywell Device


Printer Setup

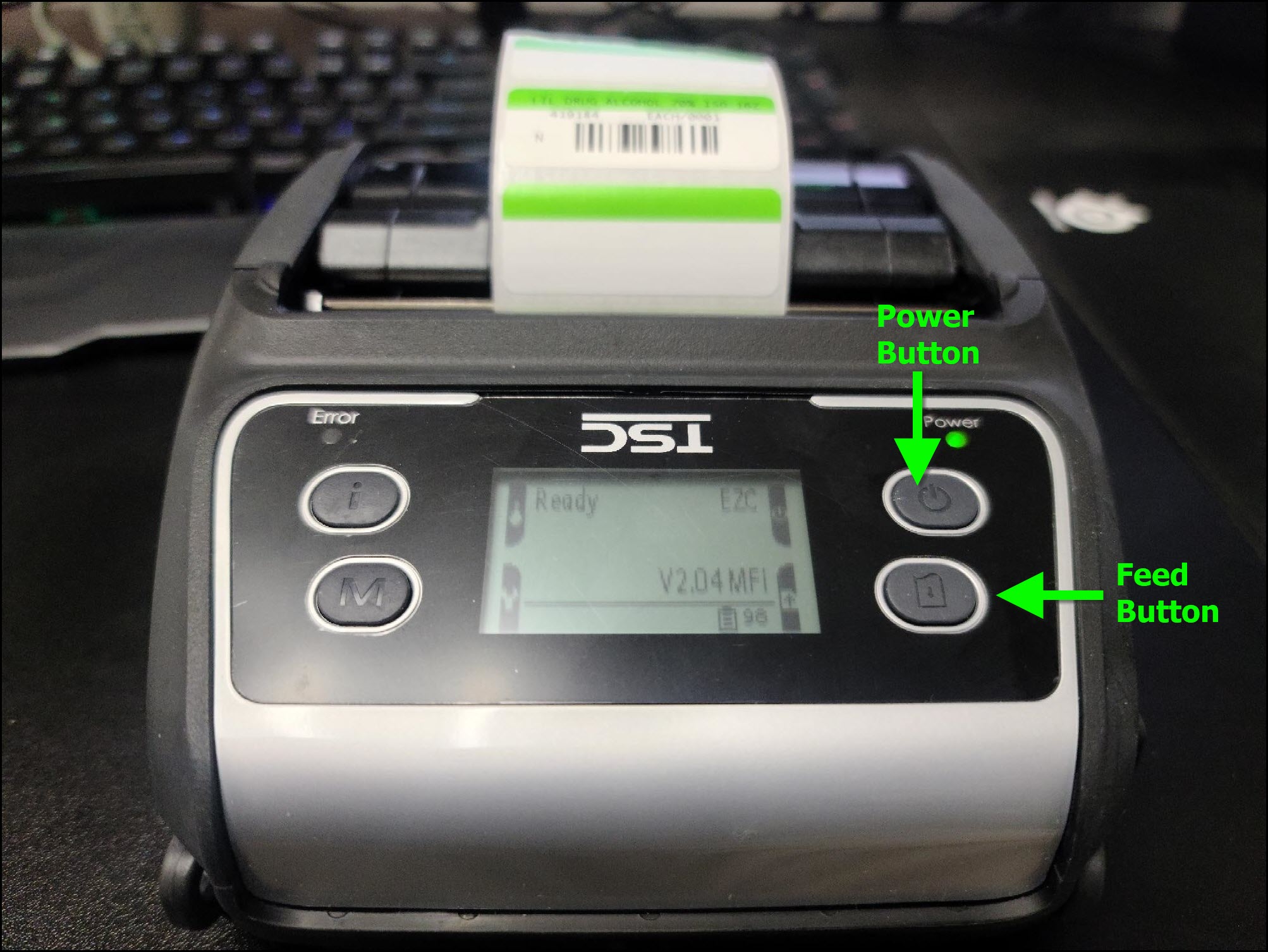

Press and hold in the Power Button until you see red Error light (takes 5 seconds). Once the printer is powered on, you'll see a green Power light.  *Note: Whenever you tear tags, you may need to press the Feed Button once before doing so. Make sure your most recent tag is above the tear line and pull it to the right. You can also hold the bottom portion and tear at the seam. Do not yank on it, as you make break the printer.

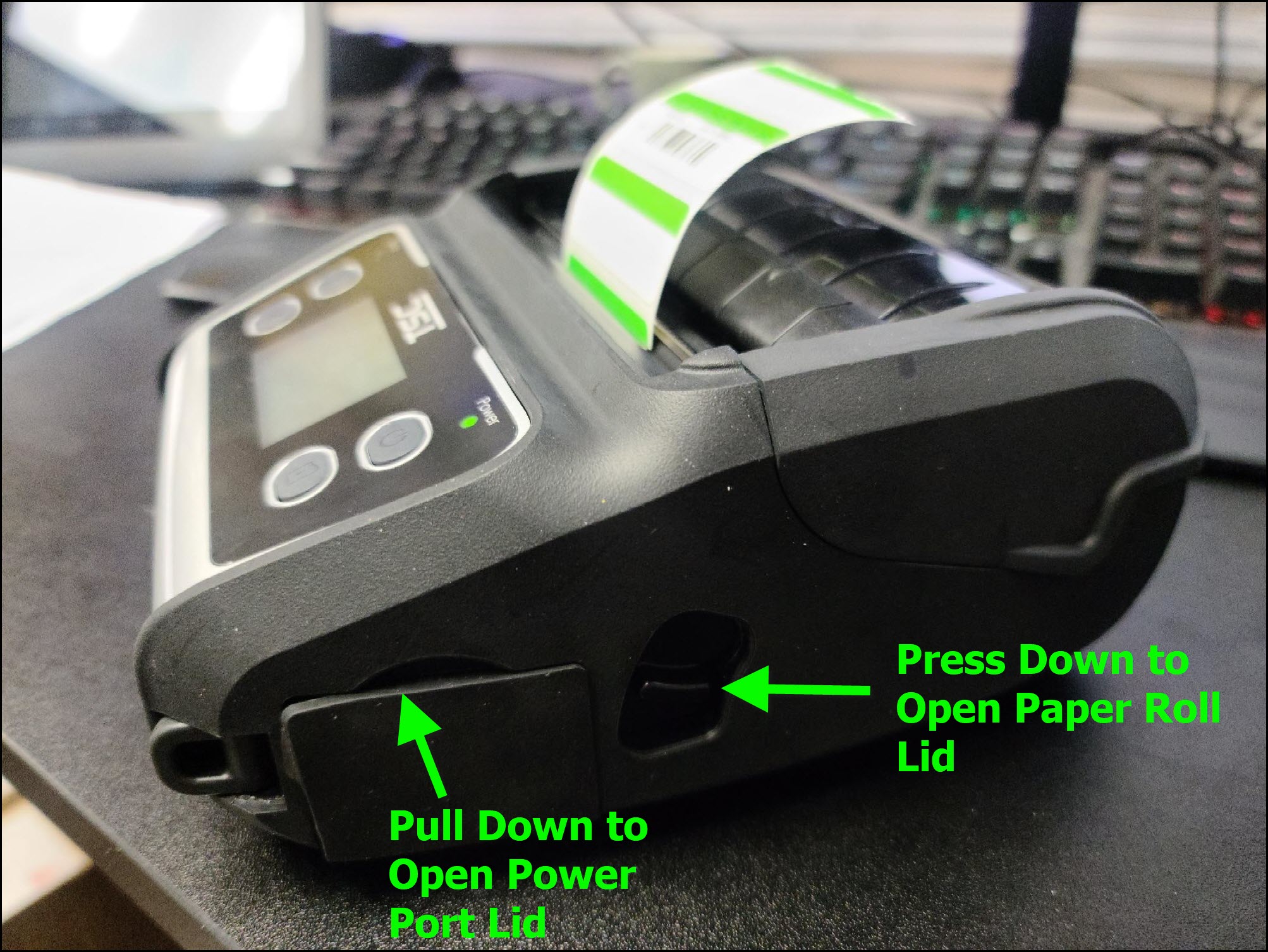

On the right side of the printer is the Power Port Lid and Paper Roll Lid. To open the Power Port Lid, pull the rubber tab down. The Power Port will be located on the right side. Plug in your Power Cable to charge the printer. Your Printer will show battery percentage on the front bottom right corner.
To open the Paper Roll Lid, press the lever down.

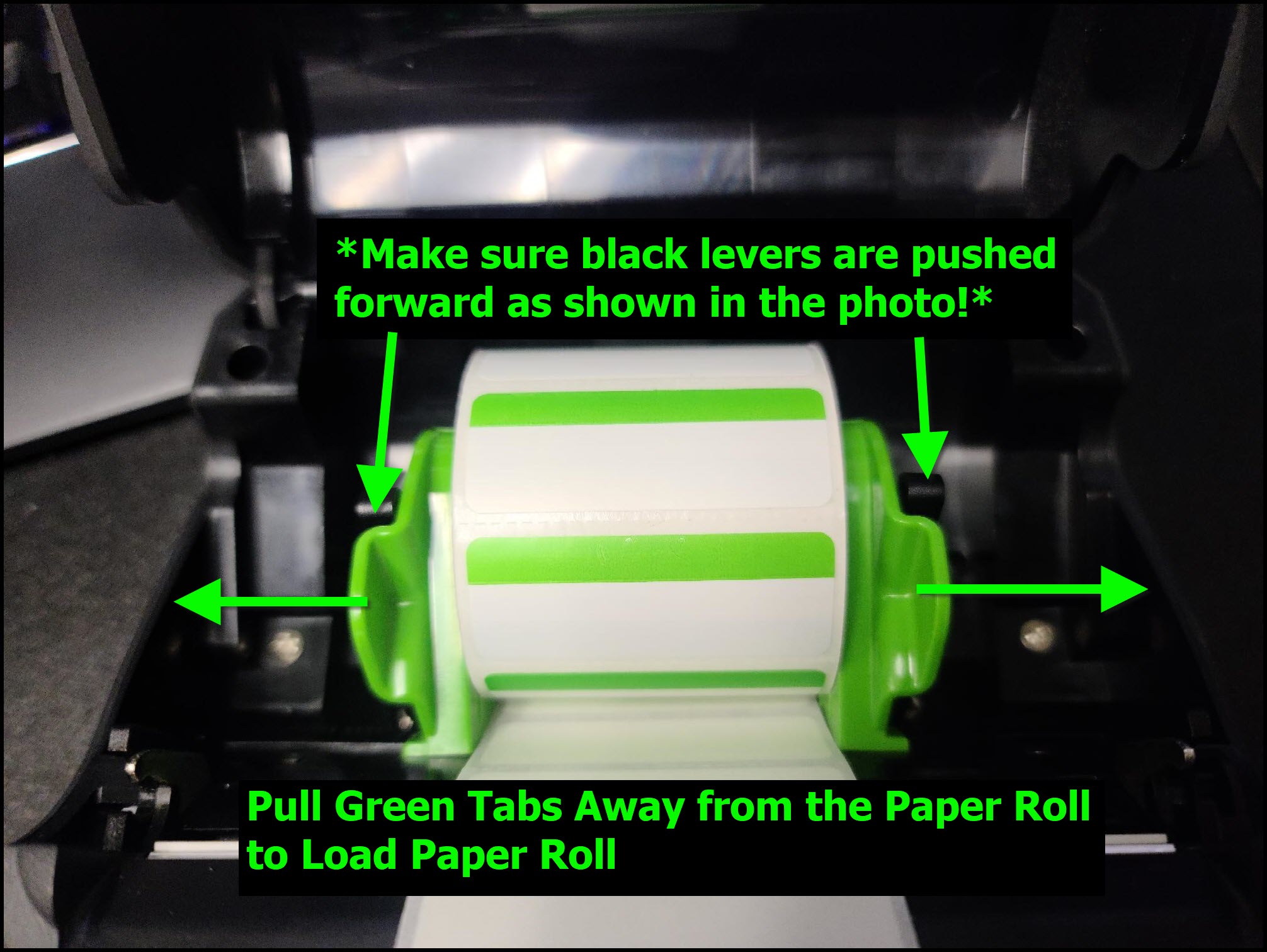

Make sure the black levers are pushed forward touching the green tabs. If they are pushed backward, it will prevent you from pulling the green tabs to load paper. Using both hands, pull the green tabs apart and load your new roll of tag paper making sure the paper feeds down (As Shown in the Diagram Below). Pull enough paper through and close the lid. Make sure it feeds properly - You will hear a sound.
You are now ready to print.



Pairing to Honeywell

  1. Pair the printer to the Honeywell. This only has to be done if you are pairing a new printer to the Honeywell. If you are switching Profiles within Mobi, you can skip to Step 2.

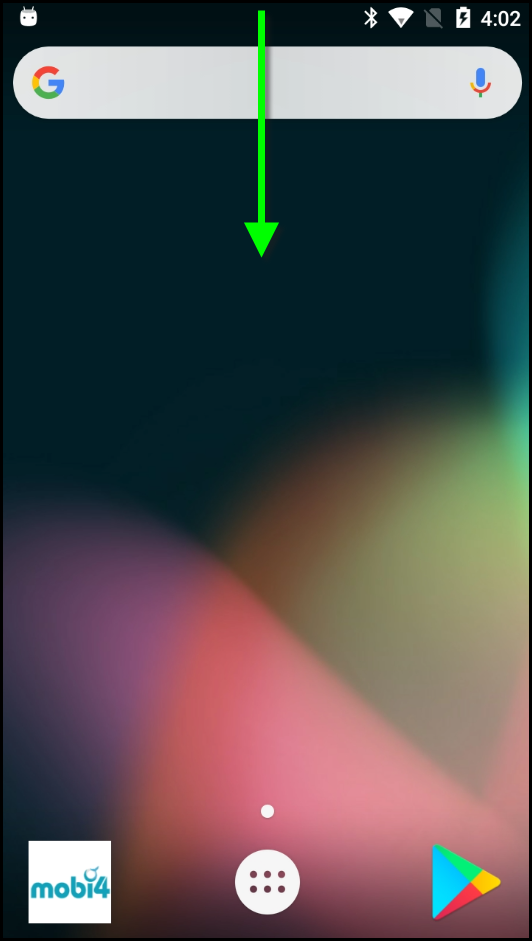

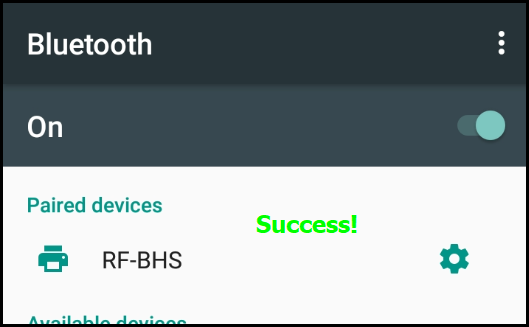

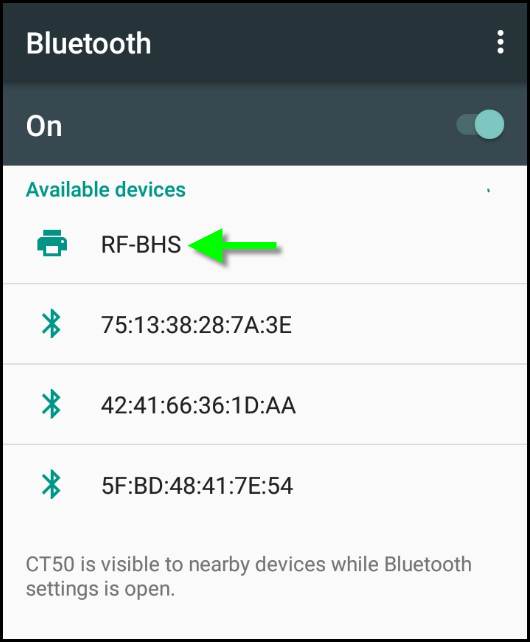

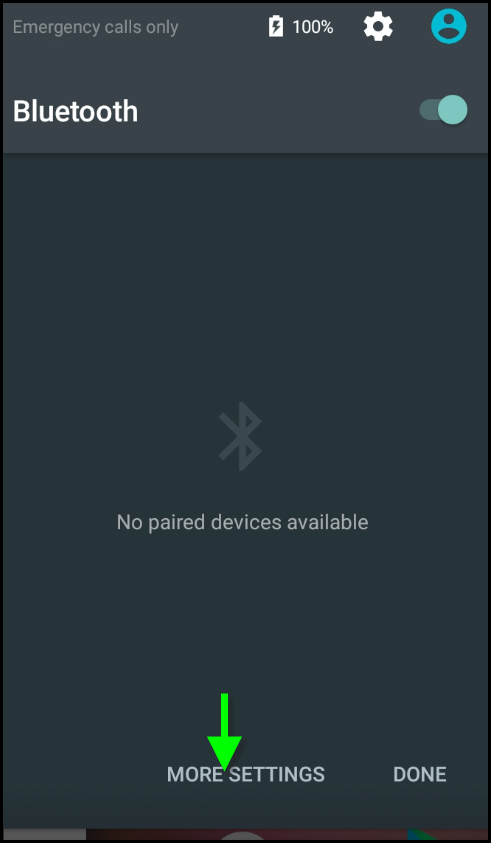

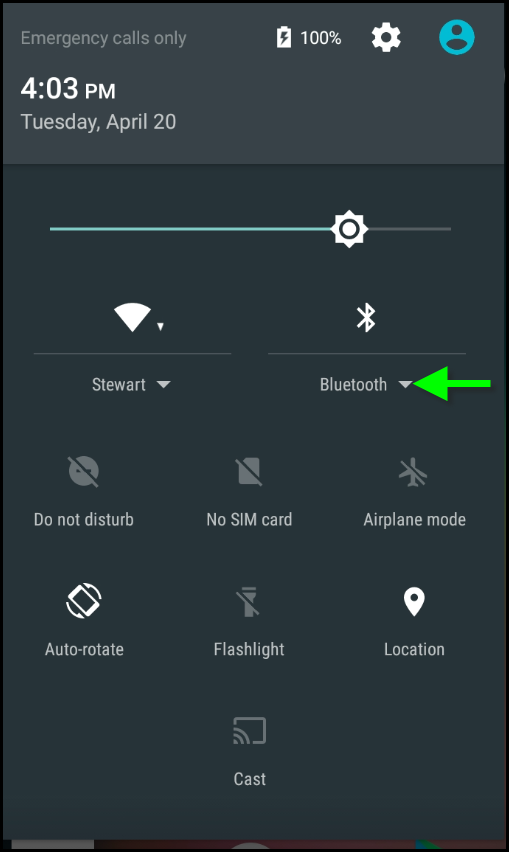

    Swipe down from the top, tap on the triangle icon next to Bluetooth, tap on More Settings, scroll through the list to locate RF-BHS and tap on it, enter 0000 for the PIN and tap on OK, and now the printer will show under Paired devices.

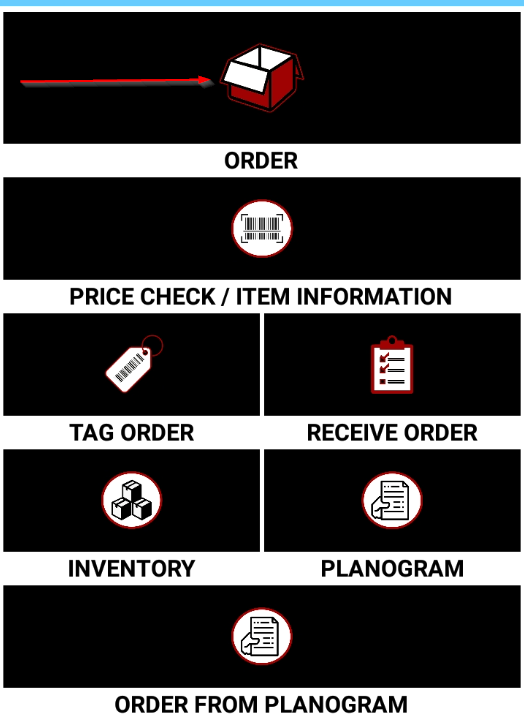

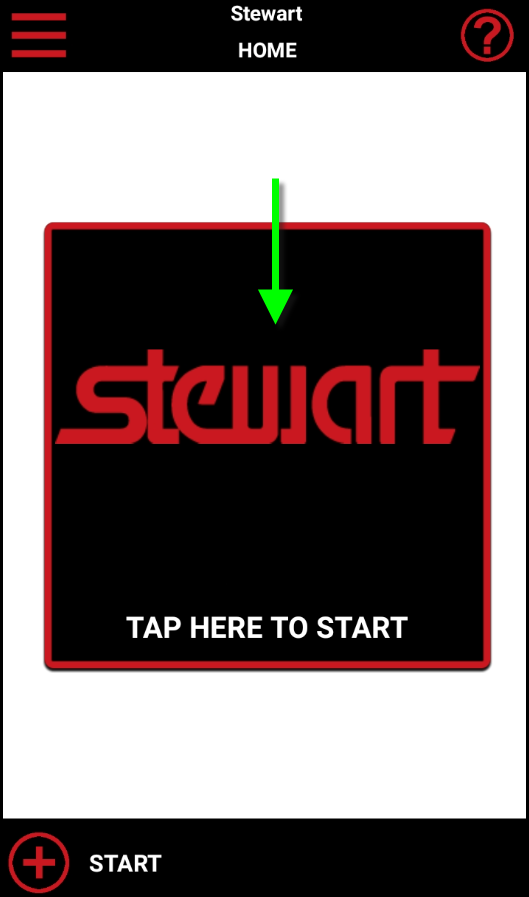

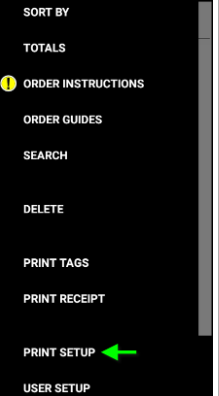

  2. Tap on the Stewart box to begin, tap on Tag Order, tap on STD (Standard labels) or SRP (pricing labels), tap on the Menu button, and tap on Print Setup

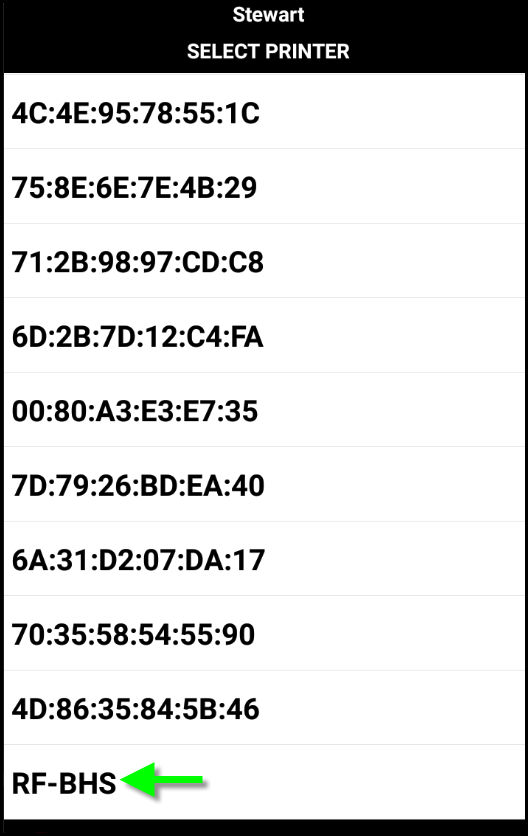

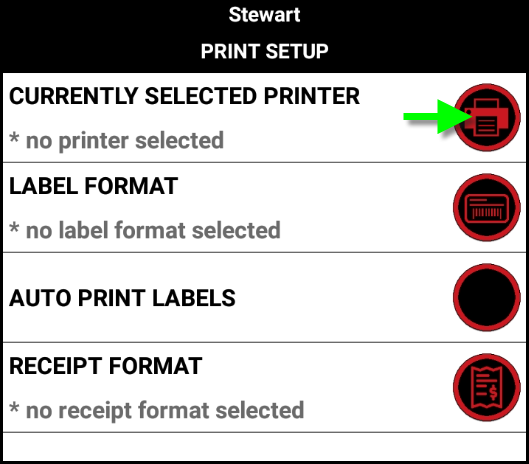

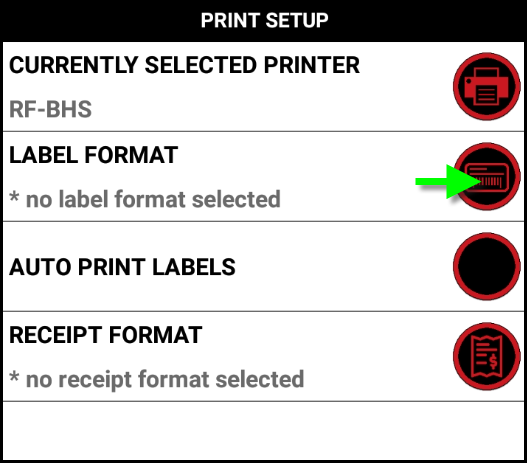

  3. Tap on the printer icon, scroll through the list to locate RF-BHS and tap on it, and tap on the label icon

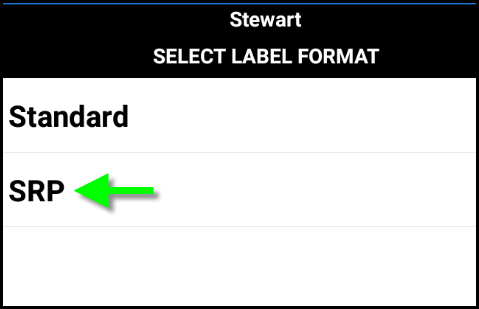

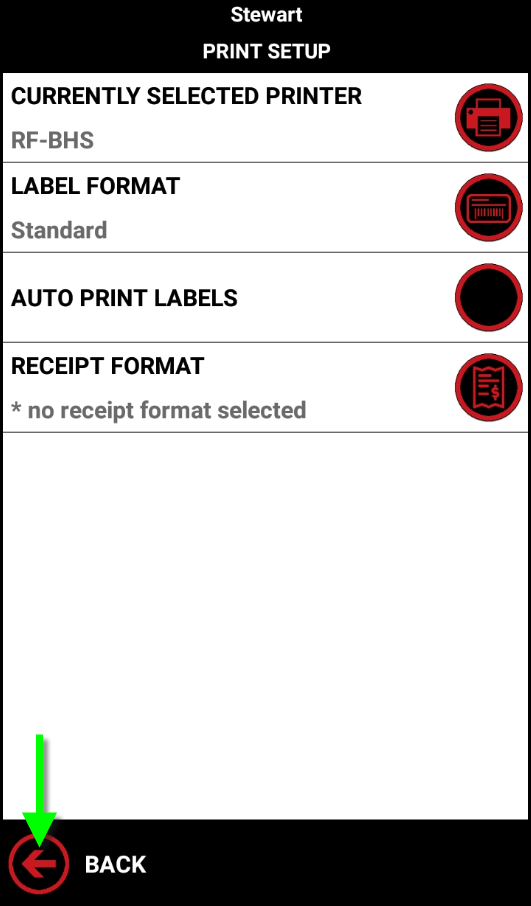

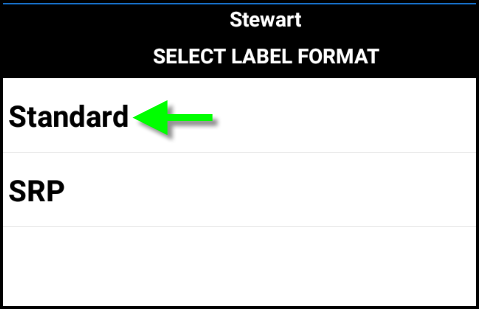

  4. Tap on Standard or SRP to match the Tag Order you setup prior, and then tap on Back. You are now good to go and ready to print tags
